R Axis Manual Rotation Stage , Precision Turntable PT-SD12-601R/801R
The main body of the manual rotary table is made of aluminum, and the surface is treated with black anodizing. The product is light and small in deformation, high in rigidity and large in load. Double bearing guides ensure more stable operation. Few connecting parts, high precision, and cost-effective rotary table.
Product features
Special machining technology and surface anodic oxidation treatment, achieve the perfect unity of precision, wear resistance and appearance.
Precision shafting design, high precision, good stability.
Table top can be adjusted by 360° rotation.
The microhead can be used for fine tuning within a certain range, spring reset, high resolution, no return.
The upper and lower parts are equipped with connecting holes with standard hole spacing, which is convenient to connect with other displacement tables to form a multidimensional mobile table.
Product parameters:
| Model Number | PT-SD12-601R | PT-SD12-801R |
| Platform Size | 60×60mm | 80×80mm |
| Minimum Scale | =55”/circle | =45”/circle |
| Travel Range | ±5° |
| Travel Guide | Duple×Bearing |
| Load Capacity | 3kgf(29.4N) | 4kgf(39.2N) |
| Parallelism | 20μm |
| Eccentricity | 50μm |
| Weight | 0.2kg | 0.4kg |
| Surface Material | Aluminum Alloy-Black-anodized |

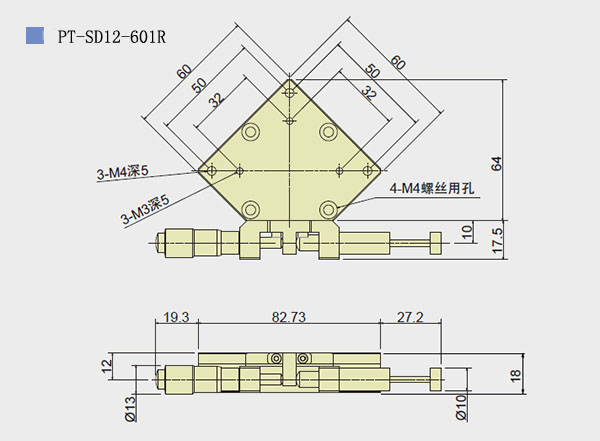

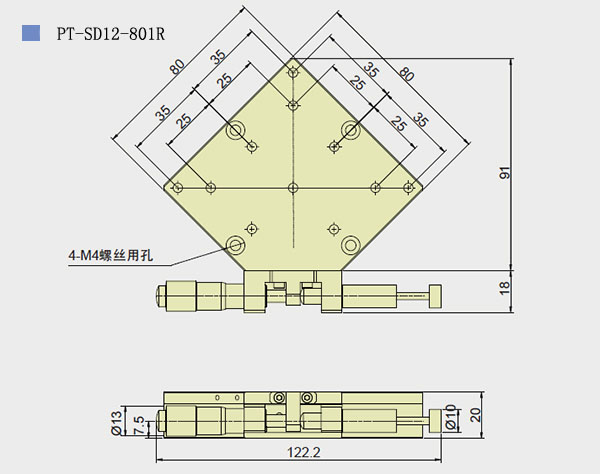

Product Dimension Map:
A rotating stage is an additional instrument mounted on the stage of a polarizing microscope. It consists of three, four or five rotating shafts. The sheet is sandwiched between a pair of glass hemispheres on a rotating table. With the help of the rotation of each rotating shaft, the crystal is tilted and rotated in space to achieve the required orientation for easy measurement. Optical constants of crystals and identifying minerals. The rotating shaft of the rotary table is finely machined from bearing steel. At the same time, because the table top adopts a worm gear structure, the displacement stage can complete any forward and reverse rotation. In today's era of such high-speed development of science and technology, the use of electric rotary tables fully indicates the development of technology, and the application of electric rotary tables in rotary measurement, rotary marking, and various processing applications.
